TP 3 : Corrigé

import pandas as pd
import numpy as np
import matplotlib.pyplot as plt
# Pour modifier la taille de sortie de graphiques dans le notebook
plt.rcParams['figure.figsize'] = [15, 8]
# Les modèles de régression
from sklearn.linear_model import LinearRegression, LogisticRegression
# Pour la CV
from sklearn.model_selection import train_test_split, GridSearchCV
# Nos score F1
from sklearn.metrics import f1_score
# Pour encoder les sorties en vecteurs one-hot
from sklearn.preprocessing import OneHotEncoder
# On charge le fichier de données
file_path = "drive/MyDrive/Colab Notebooks/ml_data/TP3/PimaIndiansDiabetes.csv"
data = pd.read_csv(file_path)
data
pregnant glucose pressure triceps insulin mass pedigree age diabetes
0 6 148 72 35 0 33.6 0.627 50 pos
1 1 85 66 29 0 26.6 0.351 31 neg
2 8 183 64 0 0 23.3 0.672 32 pos
3 1 89 66 23 94 28.1 0.167 21 neg
4 0 137 40 35 168 43.1 2.288 33 pos
... ... ... ... ... ... ... ... ... ...
763 10 101 76 48 180 32.9 0.171 63 neg
764 2 122 70 27 0 36.8 0.340 27 neg
765 5 121 72 23 112 26.2 0.245 30 neg
766 1 126 60 0 0 30.1 0.349 47 pos
767 1 93 70 31 0 30.4 0.315 23 neg

768 rows × 9 columns

# Les inputs sont toutes les données sauf "diabetes"
inputs = data.drop("diabetes", axis=1)
# Les sorties sont la variable "diabetes", qu'on transforme en variable binaire
outputs = (data["diabetes"].to_numpy() == "pos")*1
# On sépare en jeux d'entrainement/validation et test
inputs_train_val, inputs_test, outputs_train_val, outputs_test \
  = train_test_split(inputs, outputs, test_size=0.2, stratify=outputs)
# On fait le modèle linéaire
linear_reg = LinearRegression()
linear_reg.fit(inputs_train_val, outputs_train_val)
LinearRegression()
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.
# On calcule les prédictions
outputs_lin_train = (linear_reg.predict(inputs_train_val) > 0.5)*1
outputs_lin_test = (linear_reg.predict(inputs_test) > 0.5)*1
# On calcule le F1 train et test
f1_lin_train = f1_score(outputs_train_val, outputs_lin_train)
f1_lin_test = f1_score(outputs_test, outputs_lin_test)
# Paramètres pour la CV
params = np.linspace(0.001, 10, 100)
param_dict = {"C": params}
k = 10
# Modèle avec un peu plus d'itérations
logistic_reg = LogisticRegression(max_iter=10000)
# Recherche sur grille avec CV
grid_search = GridSearchCV(logistic_reg,
                            param_dict,
                            cv=k,
                            scoring="f1")
grid_search.fit(inputs_train_val, outputs_train_val)
GridSearchCV(cv=10, estimator=LogisticRegression(max_iter=10000),
             param_grid={'C': array([1.000e-03, 1.020e-01, 2.030e-01, 3.040e-01, 4.050e-01, 5.060e-01,
       6.070e-01, 7.080e-01, 8.090e-01, 9.100e-01, 1.011e+00, 1.112e+00,
       1.213e+00, 1.314e+00, 1.415e+00, 1.516e+00, 1.617e+00, 1.718e+00,
       1.819e+00, 1.920e+00, 2.021e+00, 2.122e+00, 2.223e+00, 2.324e+00,
       2.425e+00, 2.526e+00, 2.6...
       6.667e+00, 6.768e+00, 6.869e+00, 6.970e+00, 7.071e+00, 7.172e+00,
       7.273e+00, 7.374e+00, 7.475e+00, 7.576e+00, 7.677e+00, 7.778e+00,
       7.879e+00, 7.980e+00, 8.081e+00, 8.182e+00, 8.283e+00, 8.384e+00,
       8.485e+00, 8.586e+00, 8.687e+00, 8.788e+00, 8.889e+00, 8.990e+00,
       9.091e+00, 9.192e+00, 9.293e+00, 9.394e+00, 9.495e+00, 9.596e+00,
       9.697e+00, 9.798e+00, 9.899e+00, 1.000e+01])},
             scoring='f1')
In a Jupyter environment, please rerun this cell to show the HTML representation or trust the notebook.
On GitHub, the HTML representation is unable to render, please try loading this page with nbviewer.org.

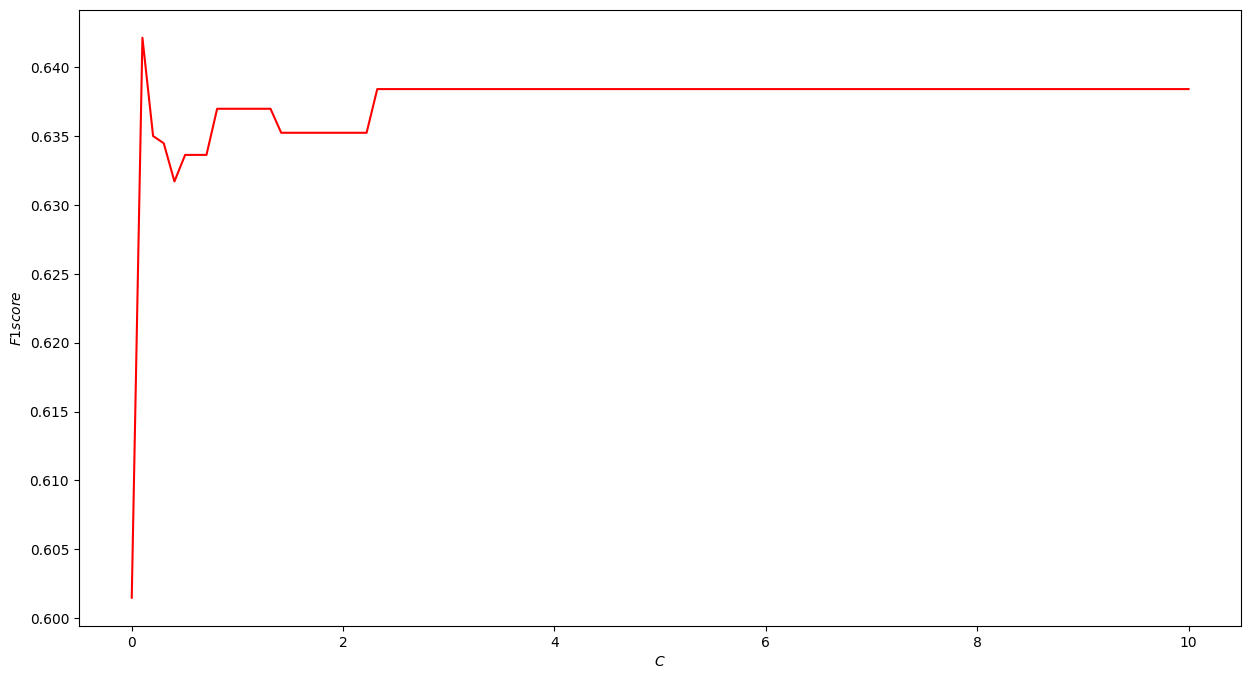

# Plot des scores
f1_scores = grid_search.cv_results_["mean_test_score"]
# Plot des scores
fig, ax = plt.subplots()
ax.plot(params, f1_scores, c="red")
ax.set_xlabel("$C$")
ax.set_ylabel("$F1 score$")
plt.plot()

# On sauve le meilleur modèle
best_C = grid_search.best_params_["C"]
best_log_reg = grid_search.best_estimator_
# Les prédictions
outputs_log_train = best_log_reg.predict(inputs_train_val)
outputs_log_test = best_log_reg.predict(inputs_test)
# Les scores f1
f1_log_train = f1_score(outputs_train_val, outputs_log_train)
f1_log_test = f1_score(outputs_test, outputs_log_test)
print(f"Le F1 pour le modèle linéaire est de "
f"{f1_lin_train:.2%} (train) {f1_lin_test:.2%} (test)")
print(f"Le F1 pour le modèle logistique (C={best_C:.4f}) est "
f"de {f1_log_train:.2%} (train) {f1_log_test:.2%} (test)")
Le F1 pour le modèle linéaire est de 62.27% (train) 64.58% (test)
Le F1 pour le modèle logistique (C=0.1020) est de 63.92% (train) 63.92% (test)
